Hummingbird Header


Click on any link to bring up a US-Letter size drawing. Use your browser's BACK button to return to the list.

Please note that these drawings describe the Hummingbird concept circa 1995-98 and do not necessarily reflect current developments.


Side View (clean)
Side View (duct detail)
Side View (detailed)

Plan View (clean)
Plan View (duct detail)
Plan View (detailed)
Plan View (2-Place)

Front View (winglets)
Front View (2-Place)


Duct as an Idealized Truss

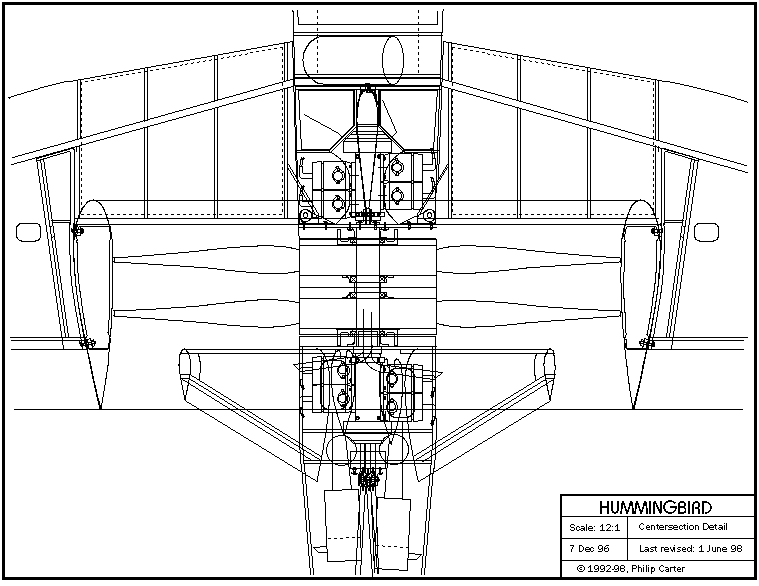

Centersection Detail
Forward Fuselage

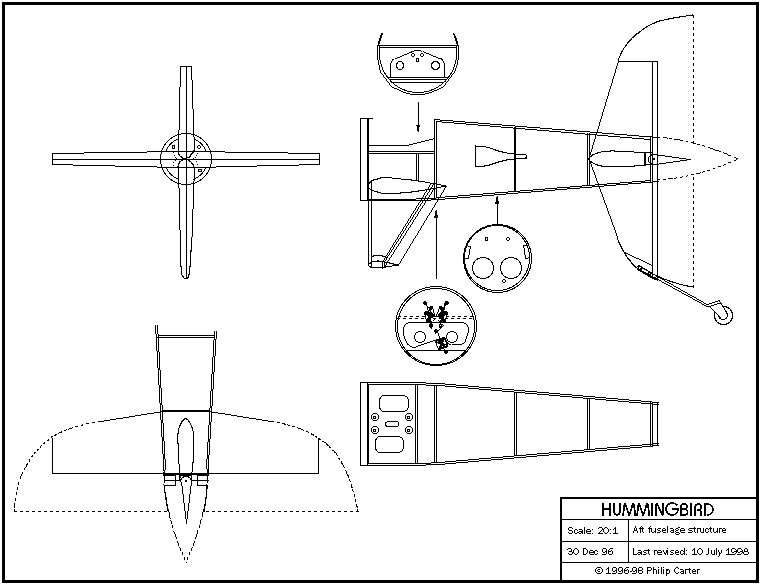

Aft Fuselage
Stator Structures
Ventral Fin & Wing Attach
Wing and Aileron
Forward Engine Bulkhead
Aft Engine Bulkhead


Propulsion System
Ducted Fan Schematic
An Ineffective Shroud

Duct Schematic (Hover)
Inboard Lifting System Schematic
Hummingbird's Lifting System


Hummingbird Painting
Hummingbird Landed

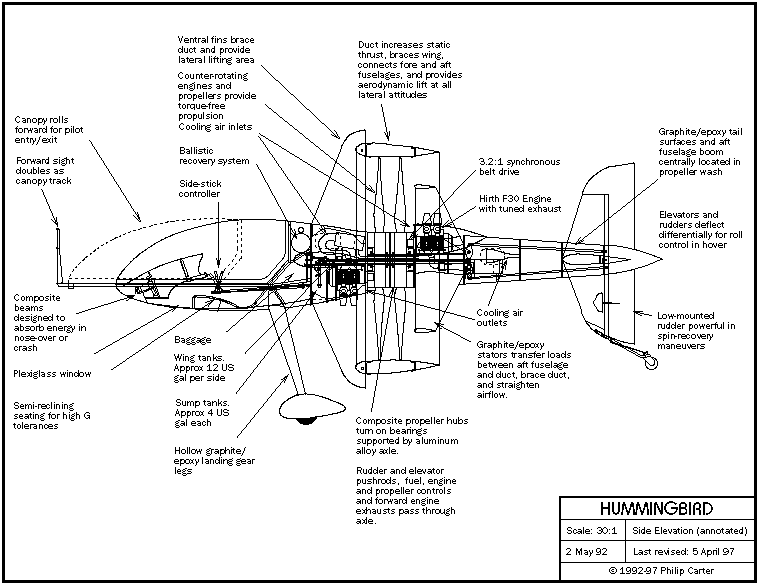

Annotated Side View

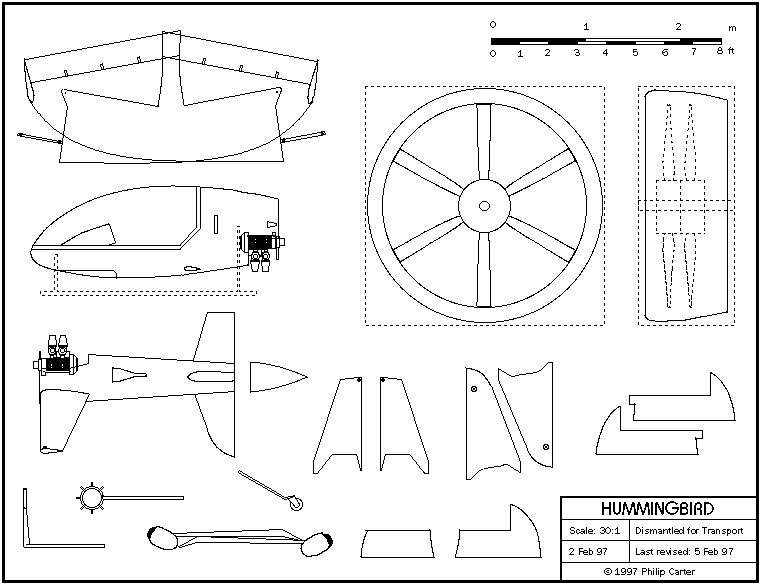

Dismantled for Transport

Lifting Systems Compared
Longitudinally Distributed Lifting Systems

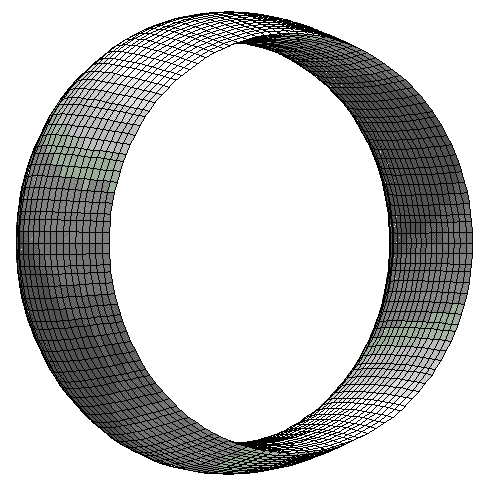

Duct 3D: Side
Duct 3D: Left Rear
Duct 3D: Right Front
